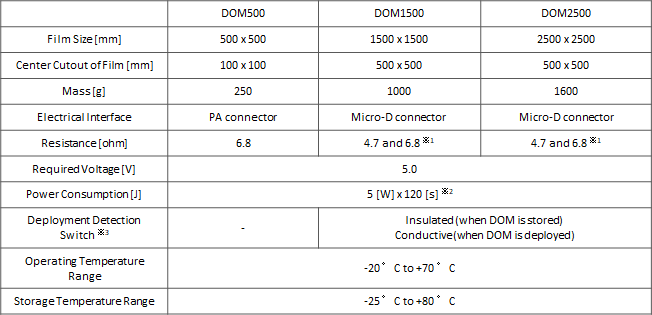

※1 DOM1500 and DOM2500 have two electrical circuits for redundancy. One is 4.7 ohm and the other is 6.8 ohm.
※2 5 W is an approximate value of the power consumption and 120 s is the maximum value of the time for which DOM requires a electrical power supply.
※3 Deployment detection switch is to identify whether DOM is successfully deployed or not. This switch is conductive when DOM is expanded. Otherwise, it becomes insulated.

  • “DOM” and “De-Orbit Mechanism” are registered trademarks of Nakashimada Engineering Works, Ltd. effective in Japan and other countries.
  • Specifications and design are subject to change without notice.

Dimensions and Mechanical interface
